A Complete Guide to Stainless Steel Screen Mesh: Selection and Mesh Sizes
stainless steel wire mesh are working on industrial filtration, pest control, architectural designs, or food processing,
A Complete Guide to Stainless Steel Screen Mesh: Selection and Mesh Sizes
Whether you are working on industrial filtration, pest control, architectural designs, or food processing, choosing the right stainless steel screen mesh is essential to ensure long-term durability and precise filtration results.
To help you find the perfect product for your project, we have answered the most frequently asked questions below.
Q1: What is a Stainless Steel Screen Mesh and Why is It So Popular?

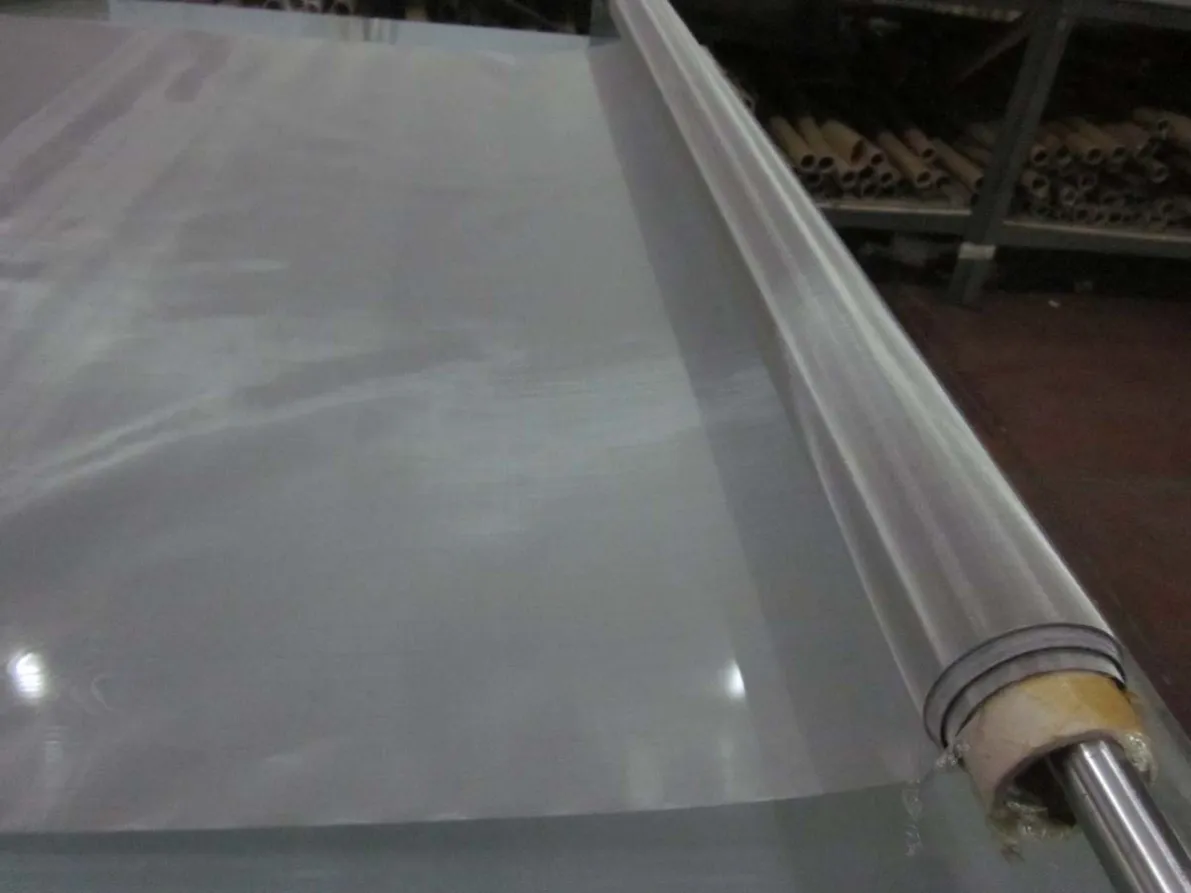

A: A stainless steel screen mesh is a versatile metal mesh woven or welded from high-quality stainless steel wire (typically 304, 316, or 316L grades).
It is widely used across various industries because it offers:
- Exceptional Corrosion Resistance: Stands up to moisture, chemicals, and outdoor elements without rusting.
- High Temperature Tolerance: Retains its structural integrity under extreme heat.
- Superior Mechanical Strength: Resists wear, impacts, and high fluid pressure better than nylon or aluminum screens.
Q2: How do "Mesh Count" and Wire Diameter Work?
A: In the wire mesh industry, Mesh Count refers to the number of openings per linear inch (25.4 mm).
- A 10 mesh screen has 10 openings per inch (larger openings).
- A 200 mesh screen has 200 openings per inch (very fine openings).
However, mesh count alone doesn't tell the whole story. The wire diameter dictates the strength of the screen and the actual open area available for air or liquid flow.
Q3: How do You Choose the Right Stainless Steel Screen Mesh Sizes?
A: Selecting from various stainless steel screen mesh sizes depends entirely on your specific application and what particle size you need to filter or retain.
Mesh Size Range | Typical Mesh Count | Key Applications |
Coarse Mesh | 2 Mesh – 20 Mesh | Security window screens, heavy-duty guards, garden fencing, gravel separation. |
Medium Mesh | 30 Mesh – 80 Mesh | Insect screens, basic water filtration, agricultural sifting, oil strainers. |
Fine Mesh | 100 Mesh – 200 Mesh | Powder sieving, chemical processing, air purification, hydraulic fluid filtration. |
Ultra-Fine Mesh | 300 Mesh – 500+ Mesh | High-precision liquid filtration, aerospace components, laboratory testing. |
Q4: Which Stainless Steel Material Grade Should You Choose?
A: The two most common grades used for manufacturing stainless steel screen mesh are 304 and 316:
- Type 304: The standard, cost-effective choice. Excellent for indoor use, standard ventilation, and general filtration applications.
- Type 316: Contains added molybdenum for superior corrosion resistance. Ideal for marine environments, coastal areas, acid processing, and pharmaceutical applications.
Q5: Can Stainless Steel Screen Mesh be Custom Cut or Fabricated?
A: Yes. Coarse and medium stainless steel screen mesh sizes can easily be cut with wire cutters or heavy shears and formed into custom shapes, discs, cylinders, or framed panels to fit your machinery or architectural openings.
