Honeycomb belts
Honeycomb (Flat Wire) Conveyor Belt
Honeycomb flat wire conveyor belt with smooth stable surface and 40-65% open area, from -80 C to about 850 C in stainless steel.
Specifications
- Construction
- Flat wire pickets on cross rods
- Open area
- 40-65%
- Temperature
- -80 C to 850 C
- Width
- 100-3000 mm
- Materials
- Carbon steel, galvanized, SS304, SS316

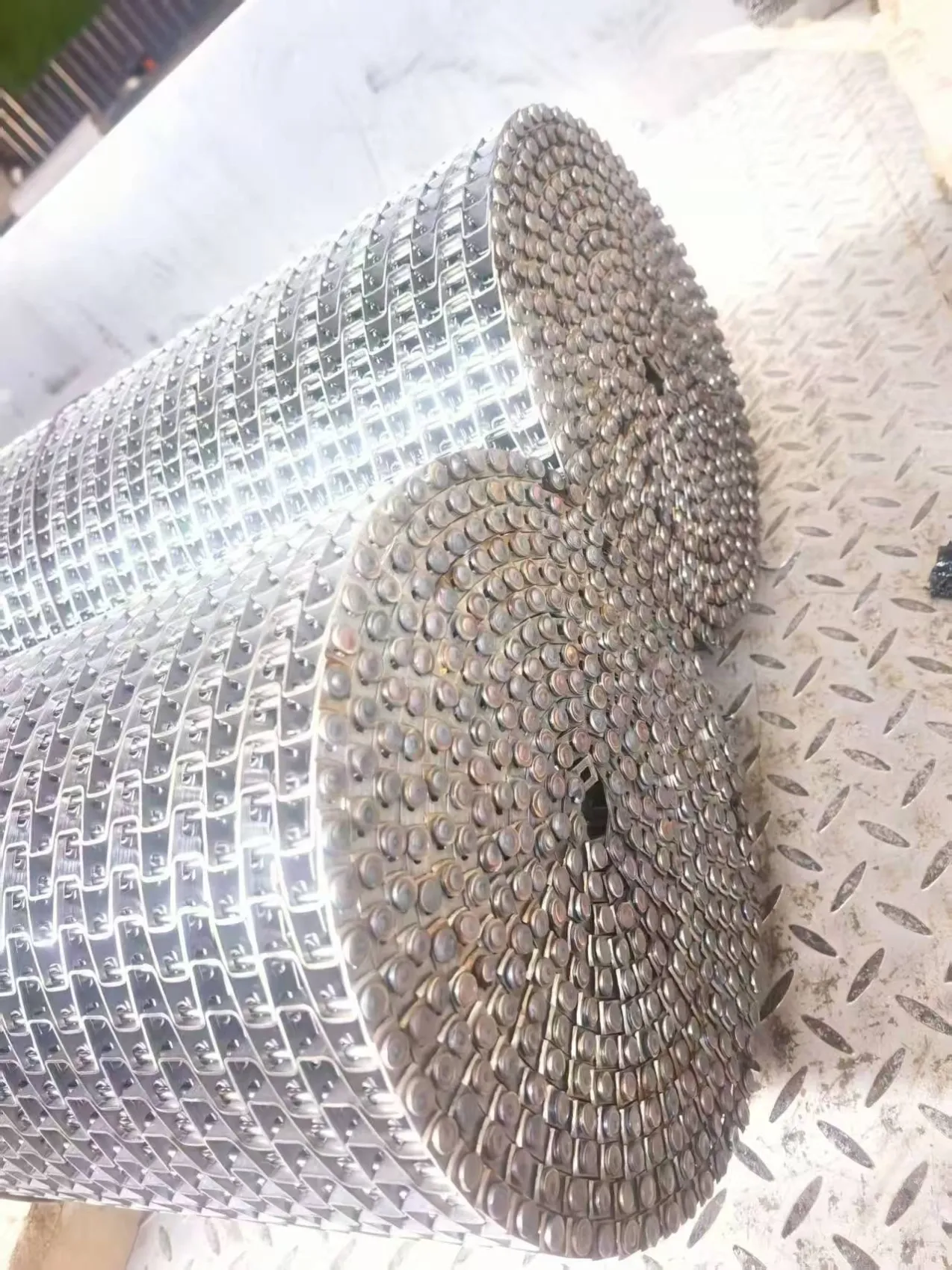

Honeycomb Conveyor Belt
Product Description
Honeycomb Conveyor Belt, also known as Flat Wire Conveyor Belt, is a durable metal conveyor belt made from flat wire pickets threaded onto cross rods. Its flat, smooth carrying surface provides stable support for small, delicate, and irregularly shaped products, while the open mesh structure allows efficient airflow, heat transfer, steam, water, and oil drainage.
With excellent strength, temperature resistance, and easy maintenance, Honeycomb Conveyor Belts are widely used in food processing and industrial conveying systems, including baking, drying, cooling, frying, freezing, and washing.
Key Features & Benefits
- Flat Carrying Surface: Provides smooth and stable product support.
- Open Mesh Structure: Enables excellent airflow, heat transfer, and drainage.
- High Strength & Durability: Suitable for continuous operation under demanding conditions.
- Temperature Resistance: Available for high-temperature and low-temperature applications, depending on material and belt design.
- Flexible Drive Options: Compatible with sprocket drive or friction drum drive.
- Easy to Clean & Maintain: Open structure supports convenient cleaning and maintenance.
- Customizable Design: Available in different materials, widths, mesh openings, and edge configurations.
Edge Options
- Welded Edge
- Clinched Edge
- Chain Edge
Materials
Carbon Steel, Galvanized Steel, Stainless Steel 304, and Stainless Steel 316.
Applications
Honeycomb Conveyor Belts are widely used in:
- Baking and bread production systems
- Heating and drying systems
- Cooling and freezing systems
- Frying and washing systems
- Food processing and product handling
- Packaging and sorting systems
- Sieving and screening systems
- Waste handling systems
- Industrial conveying equipment
