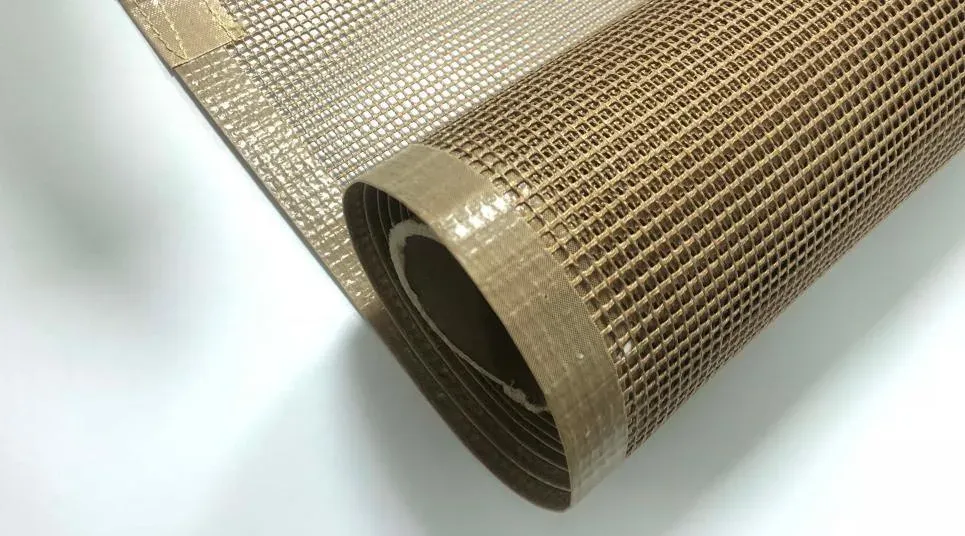

PTFE open mesh Belt
PTFE (Teflon) Open Mesh Conveyor Belt
PTFE coated fibreglass open mesh conveyor belt for -70 to 260 C, with non-stick surface for drying, baking, packaging and lamination.
Specifications
- Material
- PTFE coated woven fibreglass
- Working temperature
- -70 to 260 C
- Thickness
- 0.5, 0.9, 1.0, 1.2 mm
- Surface
- Non-stick, easy to clean
- Typical use
- Drying, baking, lamination, packaging
PTFE (Teflon) Open Mesh Belts
PTFE conveyor belts working temperature range is from -70°C to 260°C. PTFE conveyor belts are widely used in the food and beverage, packaging, drying, printing, chemical, and other industries.PTFE Conveyor Belts, also known as Teflon Belts, are manufactured by applying PTFE coating to woven fiberglass fabrics to produce different grades suitable for various applications.
PTFE Belt Thickness：0.5mm,0.9mm,1.0mm,1.2mm
PTFE Belt Fabric Types
- Premium Fiberglass Fabric: High-quality base material offering superior dimensional stability and maximum tensile strength for heavy-duty applications.
- Standard-Grade PTFE Fiberglass Fabric: A cost-effective solution providing reliable release properties and chemical resistance for general-purpose conveying.
- PTFE Coated Fiberglass: The industry standard, combining the mechanical strength of fiberglass with the non-stick and temperature-resistant properties of PTFE.
- Tear-Resistant PTFE Fiberglass: Engineered with reinforced edges or modified weaves to prevent fraying and withstand high-tension, abrasive environments.
- Porous PTFE Fabric: Features a microporous structure that allows for air permeability, steam release, and drying capabilities during processing.
- Antistatic PTFE Cloth: Infused with conductive agents to dissipate static electricity, ideal for sensitive electronic manufacturing or explosive environments.
Features of PTFE Conveyor Belts
- Reliable, durable, and flexible
- Excellent non-stick surface
- Easy to clean
- Excellent chemical resistance
- High heat resistance
- Suitable for continuous high-temperature operation
PTFE (Teflon)belt Applications
- Laminated Separation
- Baking and Frying
- Heat Sealing
- Bottle Washing
- Food Packaging
- Paint Spraying
- Acid Protection
- Metal Foil Processing
- Paper Processing
Textile and Clothing Processing
