Self-Stacking Spiral Belt
Self-Stacking Spiral Freezer Belt
Self-stacking spiral freezer belt that forms its own helical support, with energy-efficient design for IQF freezing towers.
Specifications
- Materials
- SS316L, SS304
- Construction
- Self-stacking, no cage or drum
- Energy
- Often 20-40% less motor demand
- Typical use
- IQF spiral freezers
Self-Stacking Spiral Freezer Belt
Product Description
Self-Stacking Spiral Freezer Belt is a high-performance spiral conveyor belt designed for continuous freezing, cooling, and food processing applications. Its self-supporting spiral structure allows the belt to stack directly on itself, eliminating the need for traditional support cages.
The compact vertical design maximizes freezer capacity while maintaining efficient airflow and stable product conveying. Made from high-quality stainless steel wire, the belt offers excellent strength, durability, and hygienic performance for demanding food processing environments.
Key Features & Benefits
1. Self-Stacking Design
The belt stacks directly on itself, reducing the need for support structures and optimizing available floor space.
2. Compact & High-Capacity
Maximizes vertical space and increases product handling capacity within a compact freezer footprint.
3. Efficient Freezing & Airflow
The open mesh structure promotes uniform airflow and heat transfer for efficient freezing and cooling.
4. Stable & Durable Construction
Interlocking spirals and connecting rods provide reliable belt support and smooth operation under continuous working conditions.
5. Hygienic & Easy to Maintain
The open structure facilitates cleaning and sanitation, making it suitable for food processing applications.
6. Customized & OEM-Compatible
Belt width, wire diameter, coil pitch, cross rod pitch, tier height, and other specifications can be customized to match existing spiral freezer systems.

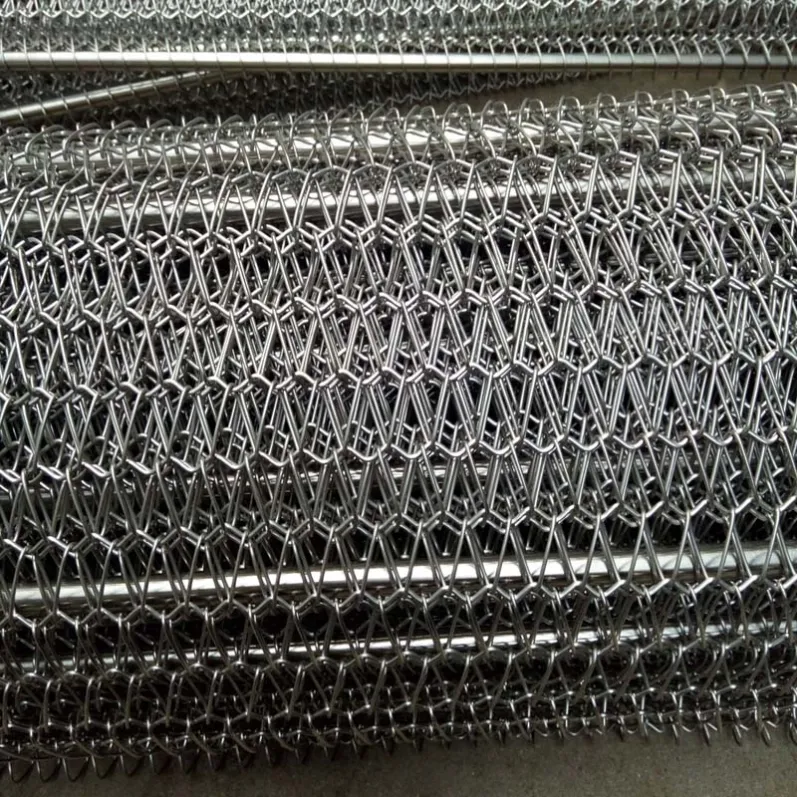

Technical Construction
- One-sided weave with right-hand winding
- Interlocking spiral coils and connecting rods
- Round or oval pigtail configurations
- Reinforced belt edges with tension links, where required
- Customized dimensions for OEM replacement
- Splice-in replacement sections available for selected belt designs
Applications
Self-Stacking Spiral Freezer Belts are widely used in food freezing and cooling systems, including:
- Vegetables & Fruits: Peas, corn, berries, and other frozen produce
- Meat & Poultry: Chicken nuggets, meat cuts, and processed products
- Seafood: Shrimp, fish fillets, and other seafood products
- Bakery Products: Dough, bread, cakes, and pastries
- Ice Cream & Dairy: Ice cream hardening and dairy processing
- Ready-to-Eat Foods: Pizza, prepared meals, and frozen snacks
