Square woven wire mesh
Square Woven Stainless Steel Wire Mesh
Square woven stainless steel wire mesh in SS304, 304L, 316 and 316L, from 1x1 to 635x635 mesh per inch, in plain and twill weaves.

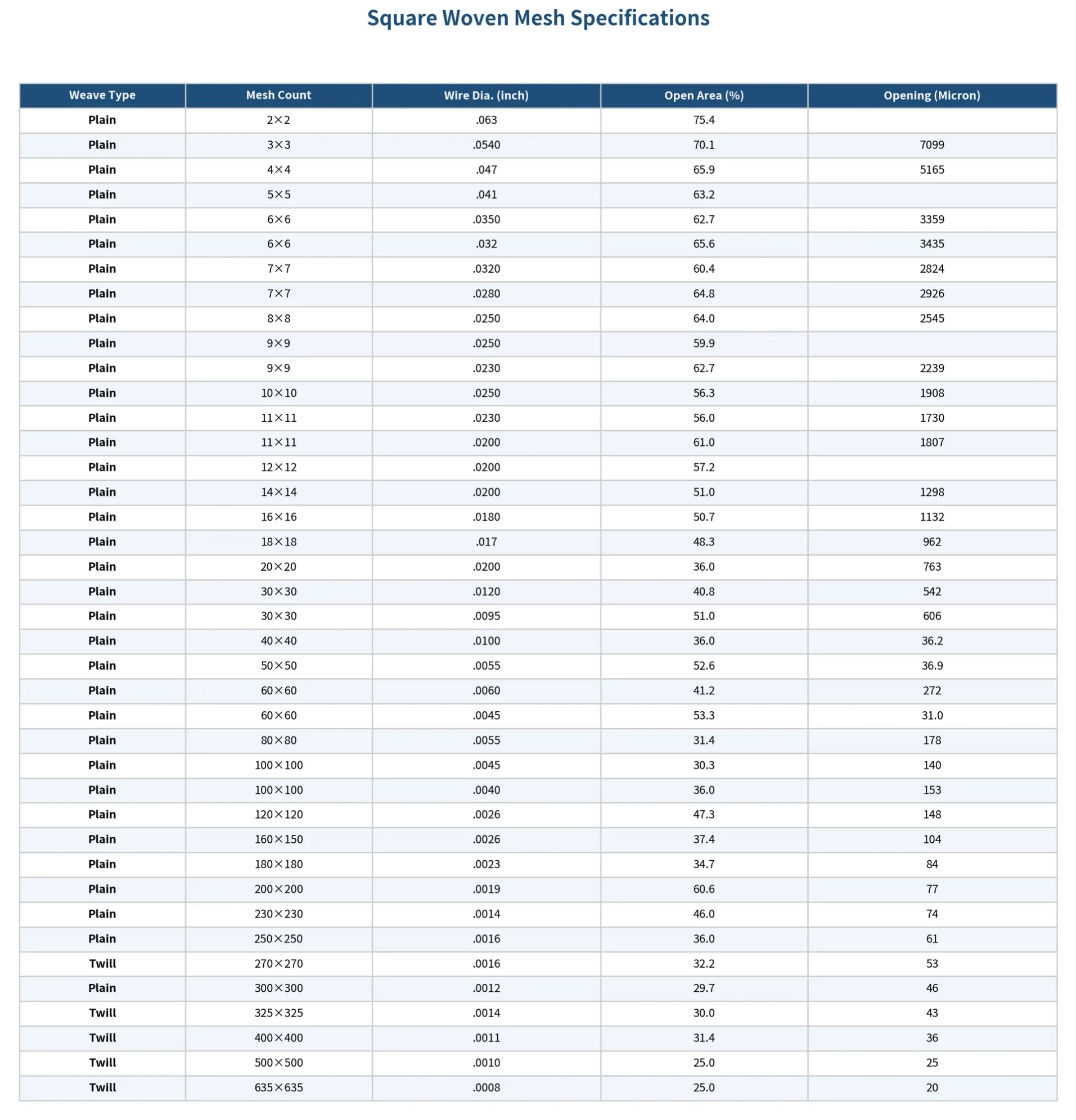

Specifications
- Material
- SS304, 304L, 316, 316L and others
- Mesh range
- 1x1 to 635x635 mesh per inch
- Weave
- Plain or twill
- Opening
- 20 to 7099 micron
- Common uses
- Sieves, filtration, food and beverage, mining, architecture
Construction and specifications

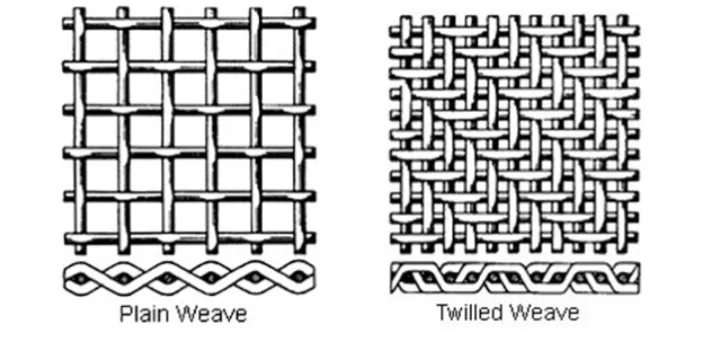

Square woven wire mesh is woven with shute wire passing alternately over and under warp wire (plain weave), or over and under two wires for a sturdier twill weave.
The range covers 1x1 to 635x635 mesh per inch, with openings from roughly 20 to 7099 micron across SS304, 304L, 316 and 316L.
Where it is used
Applications include sieves, food and beverage, mining, refining, healthcare, architecture, acoustic panels, automotive, pharmaceutical, environmental and e-cigarette industries.
For e-cigarette mesh, EPFilter recommends 250, 270, 300, 325, 400, 500 and 635 mesh; available in A4, A3, 5 inch and 10x10 inch sizes.
Ordering guidance
Tell us the mesh count, wire diameter, material grade, width and quantity to confirm a specification.
Mesh and porosity can be customized to your application; contact us for details.
