Stainless steel crimped mesh

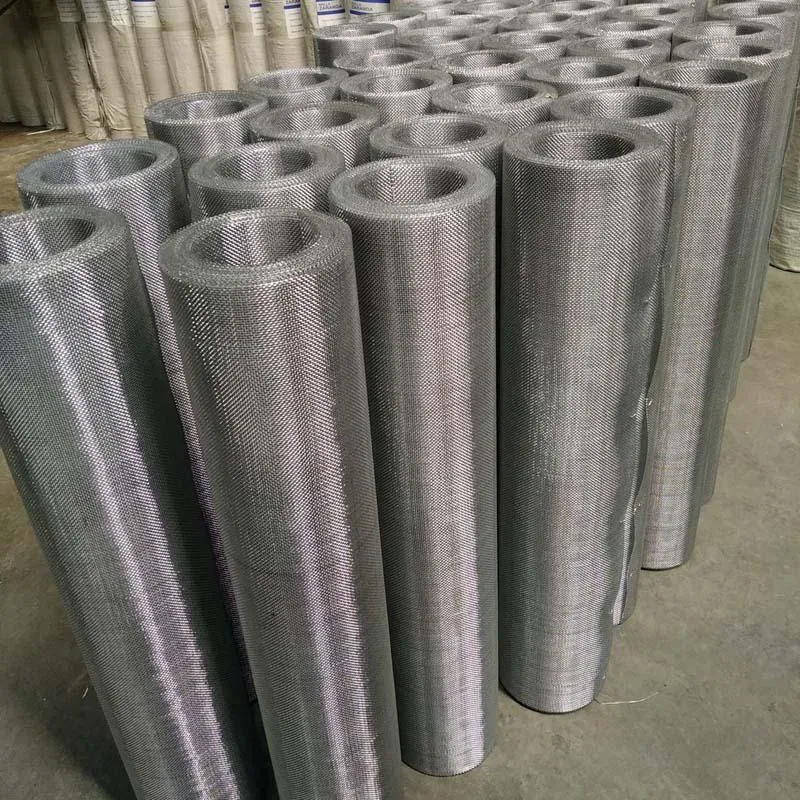

Stainless Steel Crimped Wire Mesh
Crimped wire mesh in low carbon steel, carbon iron, galvanized or stainless steel wire for screening in mining, coal and construction.
Specifications
- Material
- Low carbon, carbon iron, galvanized or stainless steel
- Wire diameter
- 0.7 to 4.8 mm (SWG 6-22)
- Mesh per inch
- 1 to 8
- Aperture
- 2.5 to 20.6 mm
- Typical use
- Mining, coal, construction screening
Stainless Steel Crimped Wire Mesh
Stainless steel crimped mesh is manufactured by pre-crimping the wire before weaving. The crimps are formed at each intersection where warp and weft wires cross, effectively locking the wires in place. This interlocked construction stabilizes the mesh and prevents wire displacement, ensuring consistent and accurate aperture sizes throughout the cloth.Additional rigidity and strength can be achieved by incorporating intermediate crimps between intersections. The crimped profile provides a more secure fit within the mesh structure, minimizing aperture variation and delivering reliable screening performance even under heavy loads.
Key Benefits
- Robust Construction: Firm, stable structure with excellent mechanical strength at an economical cost
- Corrosion Resistance: Superior resistance to acid, alkali, and general corrosion
- Heat Resistance: Performs reliably under high-temperature conditions
- High Load Capacity: Withstands heavy impact and sustained loading
- Hygienic & Odorless: Safe for food-grade and sanitary applications
- Easy Handling: Lightweight and manageable for convenient installation
Applications
- Mining & Aggregate: Screening, sizing, and dewatering in mining, quarrying, and coal processing plants
- Architectural: Facades, cladding, sunshades, partitions, and decorative interior/exterior elements
- Security: Protective fencing, machine guards, and safety barriers
- Agricultural: Grain sifting, seed sorting, and livestock enclosures
- Food Processing: Hygiene-critical screening and handling in food and beverage production
- Automotive: Grilles, radiator guards, and filtration components

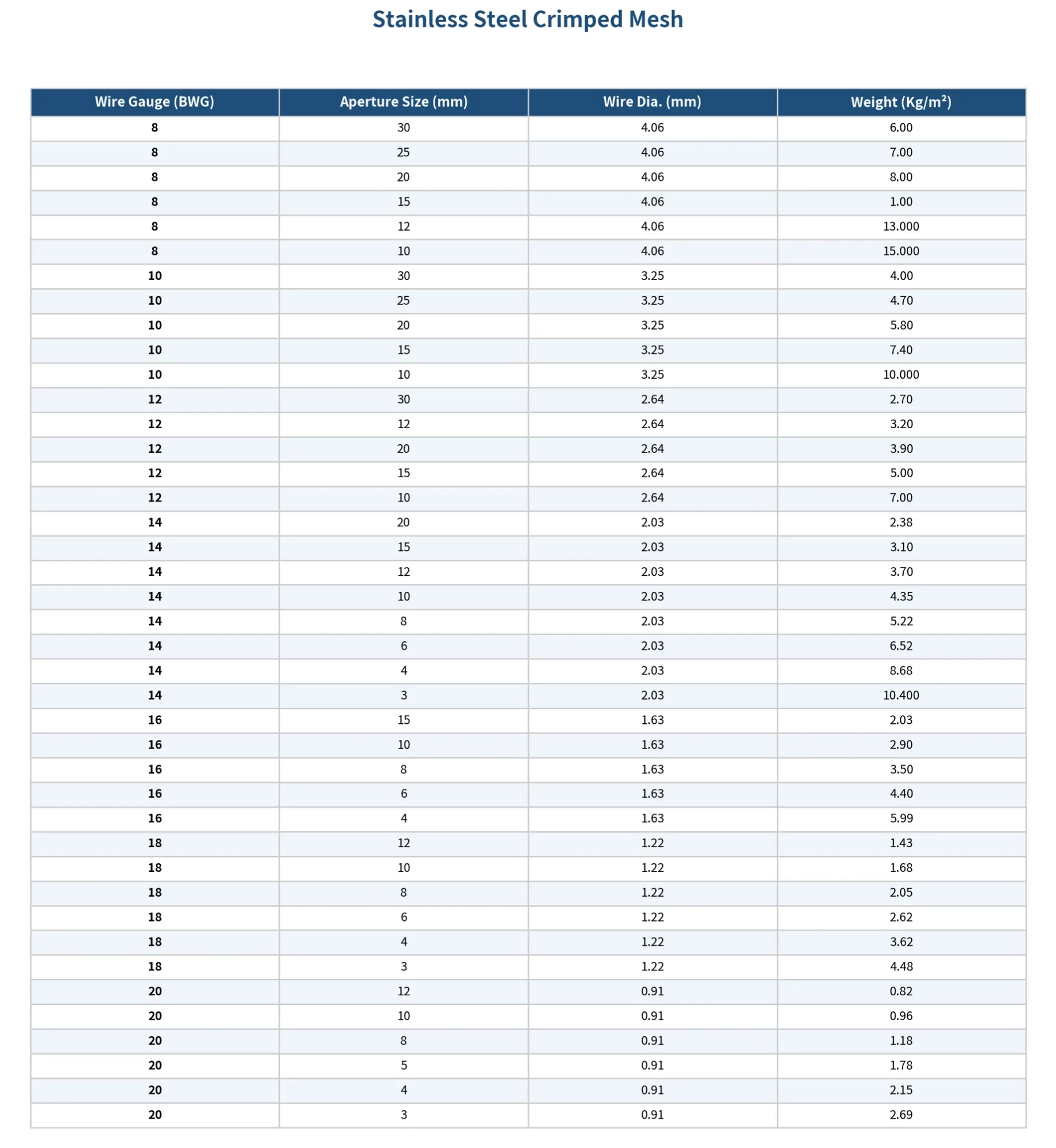

Stainless Steel Crimped Mesh
