Stainless steel dutch mesh
Stainless Steel Dutch Woven Mesh
Plain and twilled dutch weave stainless steel mesh for high-pressure filtration, from PDW 8x20 to TDW 400x2800.
Specifications
- Weave
- Plain dutch (PDW) or twilled dutch (TDW)
- Common counts
- PDW 8x20 to TDW 400x2800
- Absolute rating
- 6 to 350 micron
- Nominal rating
- 1 to 280 micron
- Typical use
- High-pressure filtration, screen changers

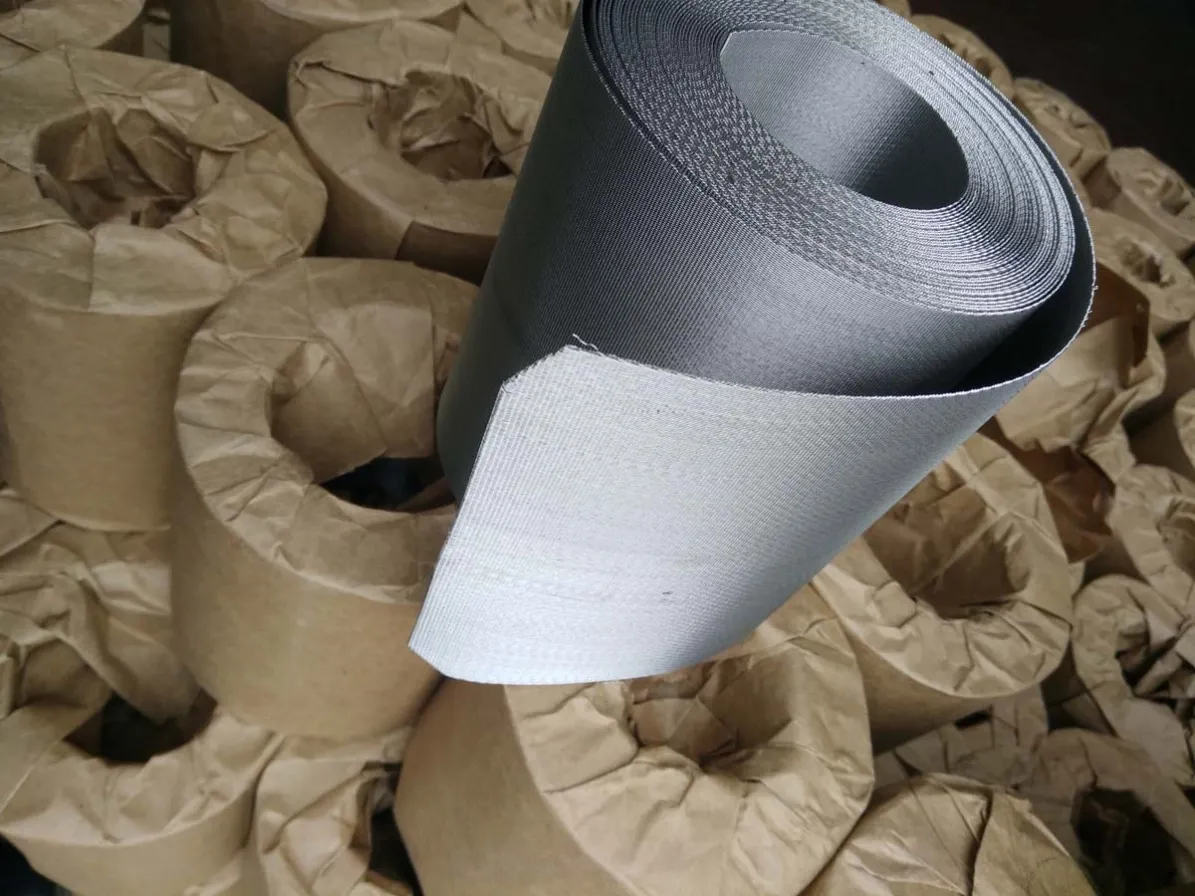

Twilled Reversible Dutch Wire Mesh (Belt Filter Screen)Manufactured from high-tensile strength stainless steel wire, this mesh is woven in a reverse Dutch twill pattern and finished in a continuous ribbon or belt form. Typically supplied in standard 10-meter rolls, it is widely known as a Belt Filter Screen or Screen Filter Belt, specifically designed for use in automatic screen changers.A single roll of this filter belt yields the equivalent of several hundred conventional 'screen packs.' Its continuous design allows for uninterrupted, non-stop operation lasting many months, significantly reducing downtime and maintenance costs.Features
- High-Precision Filtration: Ensures consistent and accurate particle retention.
- Superior Material Compatibility: Offers excellent resistance to solvents, corrosion, chemicals, and heat-melting.
- Stable Processing: Guarantees no fluctuation in material flow and no product deformation, ensuring excellent quality stability.
- Cost-Effective & Clean: Produces zero waste or scrap material during screen changer operation, resulting in minimal material consumption.
ApplicationsPFM Screen provides a wide range of filter screens for automatic, continuous screen changers used in polymer melt filtration across all segments of the plastics processing industry, including:
- Blown film and blow molding
- Sheet and film extrusion
- Filaments and fibers
- Pipe and profile
- Pelletizing
BIAX (BOPP and BOPS)Stainless steel dutch weave wire mesh types

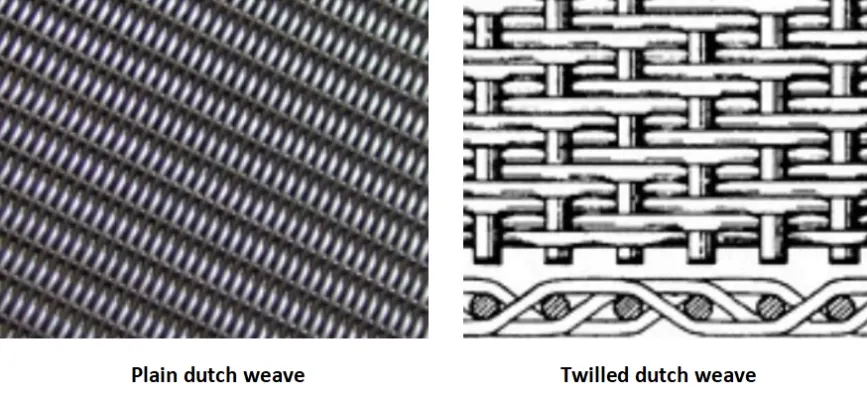

Plain Dutch Weave Mesh
Plain Dutch Weave shares the same basic pattern as a standard plain weave, but utilizes weft wires of a smaller diameter than the warp wires. This configuration results in a tight, robust cloth with small triangular openings. Despite the reduced open area, the mesh maintains excellent flow rates and exceptional strength, making it ideal for high-pressure filtration applications.The unique shape and positioning of the mesh openings enhance particle retention and promote effective filter cake formation.
Plain Dutch Weave is most frequently employed in high-pressure filtration processes for solid-liquid separation across industries such as aerospace, petroleum, and chemical processing.
Twill Dutch Weave Mesh
Twill Dutch Weave is similar to Plain Dutch Weave, but features a double layer of weft wires woven in a twill pattern. This construction creates a significantly stronger mesh capable of supporting heavier loads and achieving finer filtration levels than Plain Dutch Weave. It offers controlled flow rates and is specifically suited for applications requiring high-pressure filtration.The geometry of the openings aids in particle retention and increases filter cake formation.
Twill Dutch Weave is most commonly used in demanding applications involving heavy materials, such as the aerospace, petroleum, and chemical industries, as well as in machinery and beverage production (e.g., beer filtration).

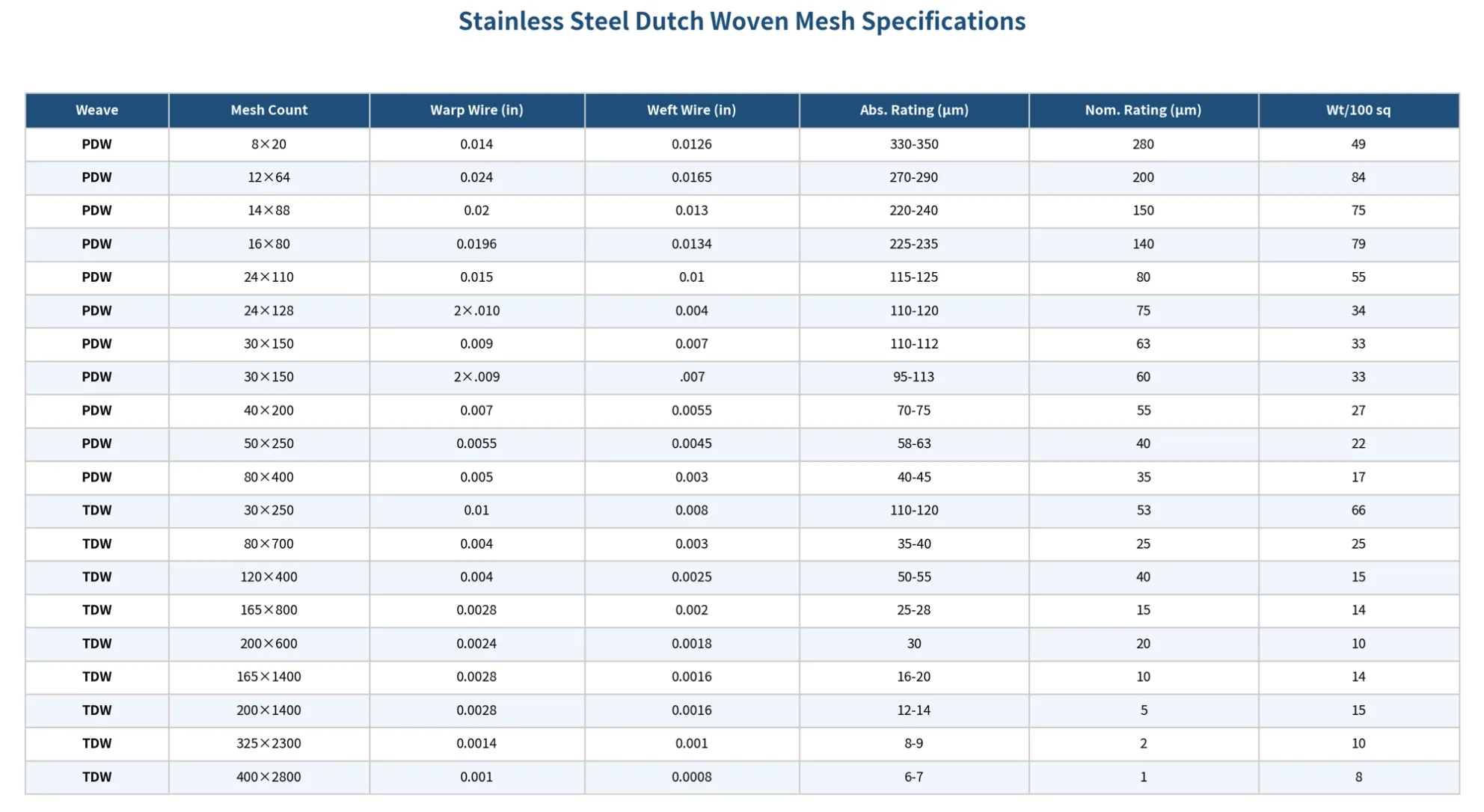

Stainless steel dutch weave mesh specifications
Twilled Reversible Dutch Wire Mesh (Belt Filter Screen)
Manufactured from high-tensile strength stainless steel wire, this mesh is woven in a reverse Dutch twill pattern and finished in a continuous ribbon or belt form. Typically supplied in standard 10-meter rolls, it is widely known as a Belt Filter Screen or Screen Filter Belt, specifically designed for use in automatic screen changers.A single roll of this filter belt yields the equivalent of several hundred conventional 'screen packs.' Its continuous design allows for uninterrupted, non-stop operation lasting many months, significantly reducing downtime and maintenance costs.
Features
- High-Precision Filtration: Ensures consistent and accurate particle retention.
- Superior Material Compatibility: Offers excellent resistance to solvents, corrosion, chemicals, and heat-melting.
- Stable Processing: Guarantees no fluctuation in material flow and no product deformation, ensuring excellent quality stability.
- Cost-Effective & Clean: Produces zero waste or scrap material during screen changer operation, resulting in minimal material consumption.
Applications
We provide wide range of filter screens for automatic, continuous screen changers used in polymer melt filtration across all segments of the plastics processing industry, including:
- Blown film and blow molding
- Sheet and film extrusion
- Filaments and fibers
- Pipe and profile
- Pelletizing
- BIAX (BOPP and BOPS)

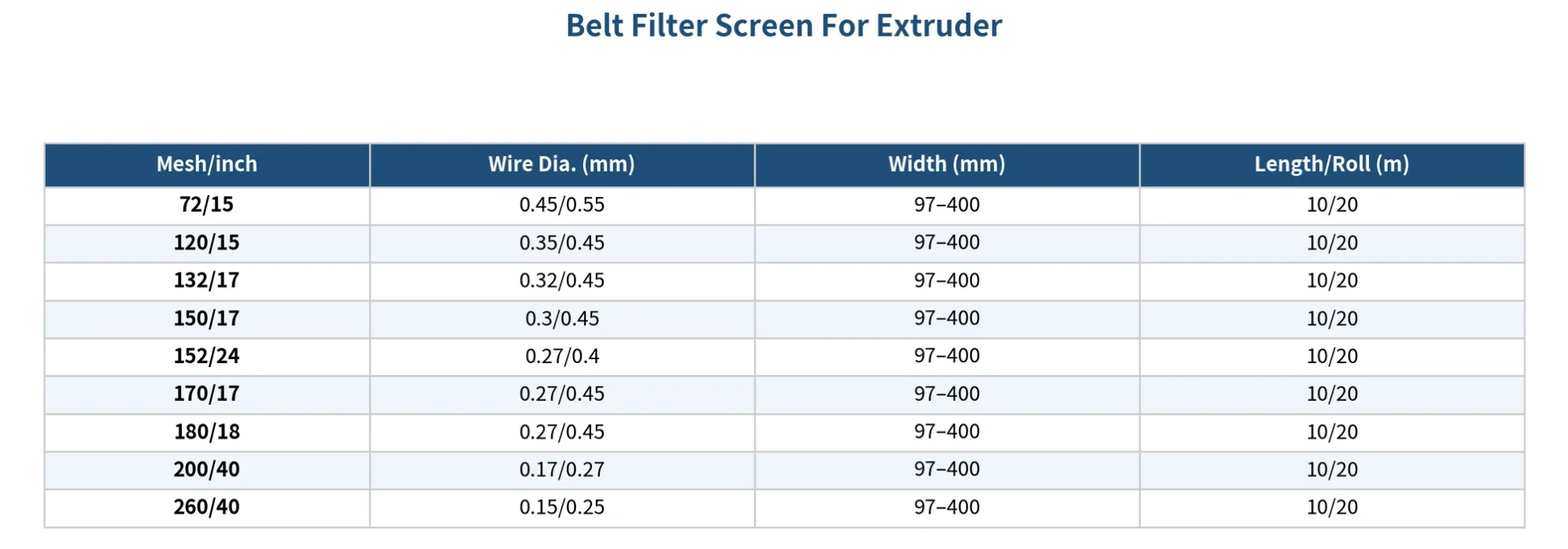

Twilled Reversible Dutch Wire Mesh Specifications
