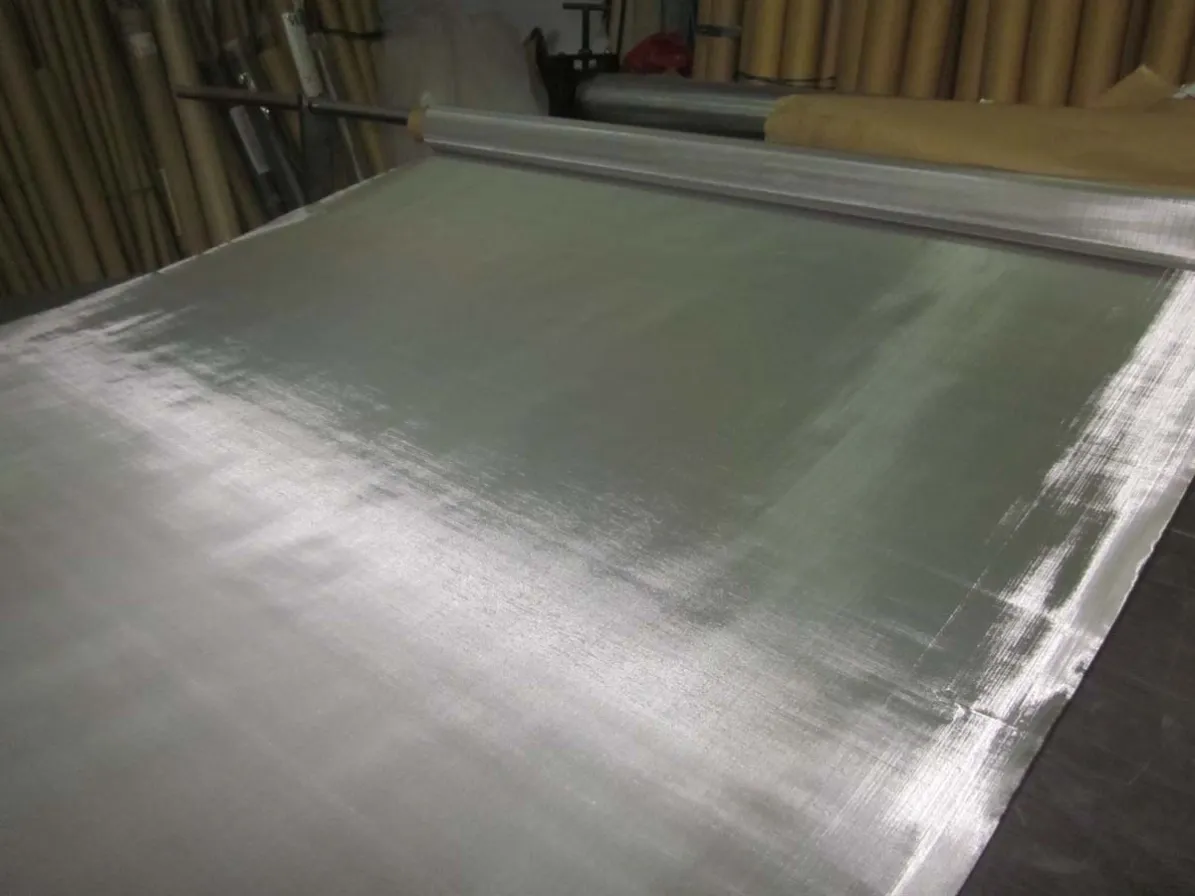

Stainless Steel Printing Mesh
High-tension, high-precision stainless steel printing mesh for electronics, textile, ceramic and glass printing plates.
Specifications
- Material
- Stainless steel
- Tension
- High
- Elongation
- Low
- Precision
- Super precision
- Uses
- Electronics, textile, ceramic, glass printing
Stainless Steel Printing Mesh
Advantages ● High Tension and Stability: Maintains consistent tension, preventing elongation and deformation. ● Durability: Resistant to wear and chemicals, ensuring a longer lifespan. ● Precision: Provides accurate and detailed prints due to its fine mesh structure. ● Cost-Effectiveness: While more expensive initially, it offers long-term savings by reducing the need for frequent replacements. ● Enhanced Control: Calendared meshes improve print accuracy and reduce movement during printing.
Applications
- Electronics & Semiconductors: Engineered for high-density PCBs and microelectronics. Exceptional pattern accuracy ensures precise alignment of conductive tracks and pads, eliminating short circuits and bridging.
- Solar Photovoltaics: Critical for screen-printing paste onto solar cells. Controls paste deposition with extreme uniformity, maximizing cell conversion efficiency, yield, and consistency over mass production runs.
- Membrane Switches: Delivers tight-tolerance printing for underlying conductive circuitry and surface graphic overlays, enduring millions of actuations without pattern degradation.
- Automotive Industry: Meets stringent automotive standards for instrument clusters and control panels, producing durable markings that withstand UV exposure, extreme temperatures, and heavy physical wear.
- Glass & Ceramics: Withstands high-temperature firing and sintering processes, enabling sharp, highly durable decorative designs on smooth, non-porous glass and ceramic surfaces.
- Medical Devices: Enables ultra-fine detail marking on surgical instruments and diagnostic tools where precise, micro-scale accuracy is critical for safety and functionality.
- Textile Printing: Maintains ultra-high tension without mesh deformation under continuous mechanical stress, making it ideal for high-speed, high-density fabric design runs.

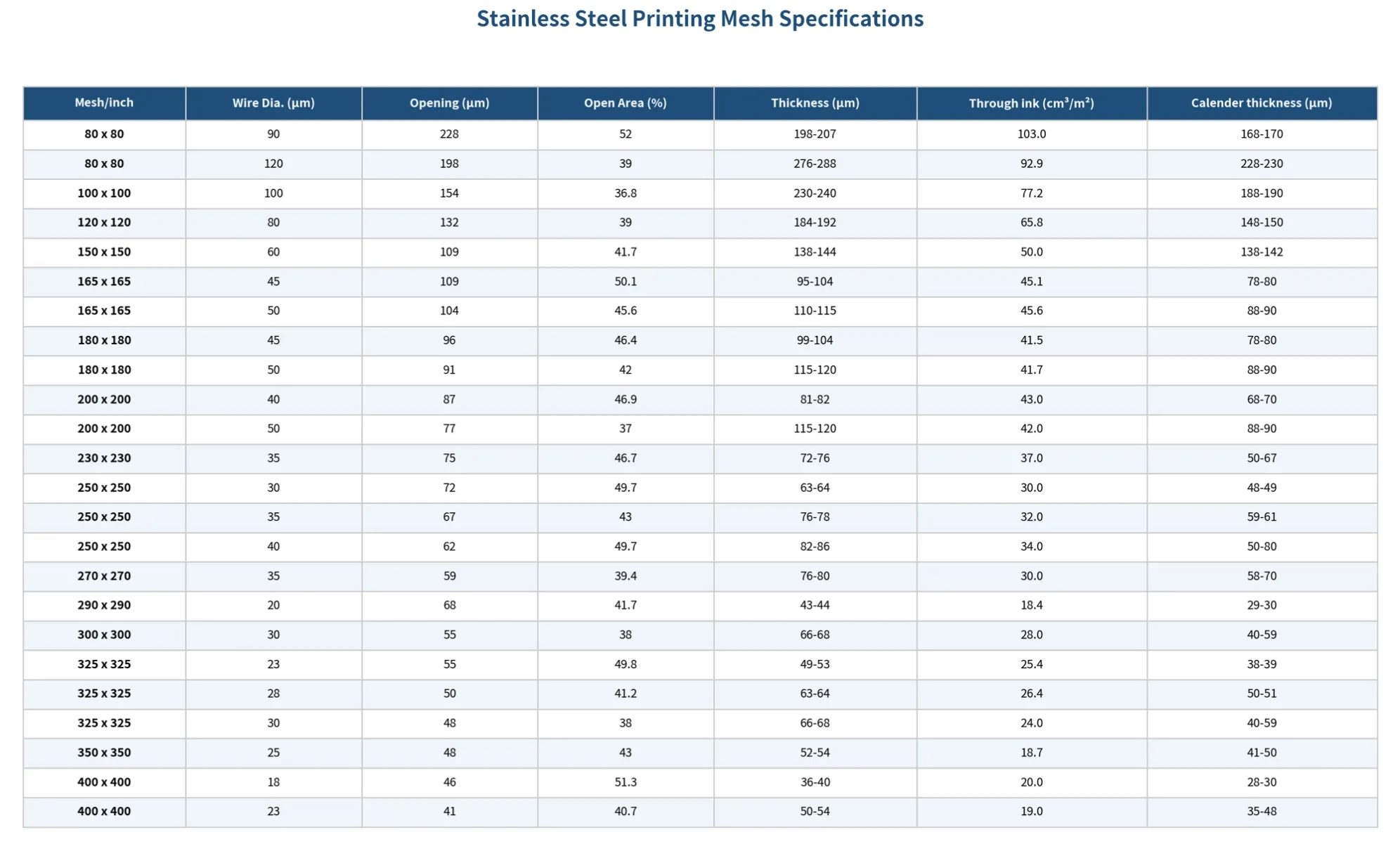

Specifications

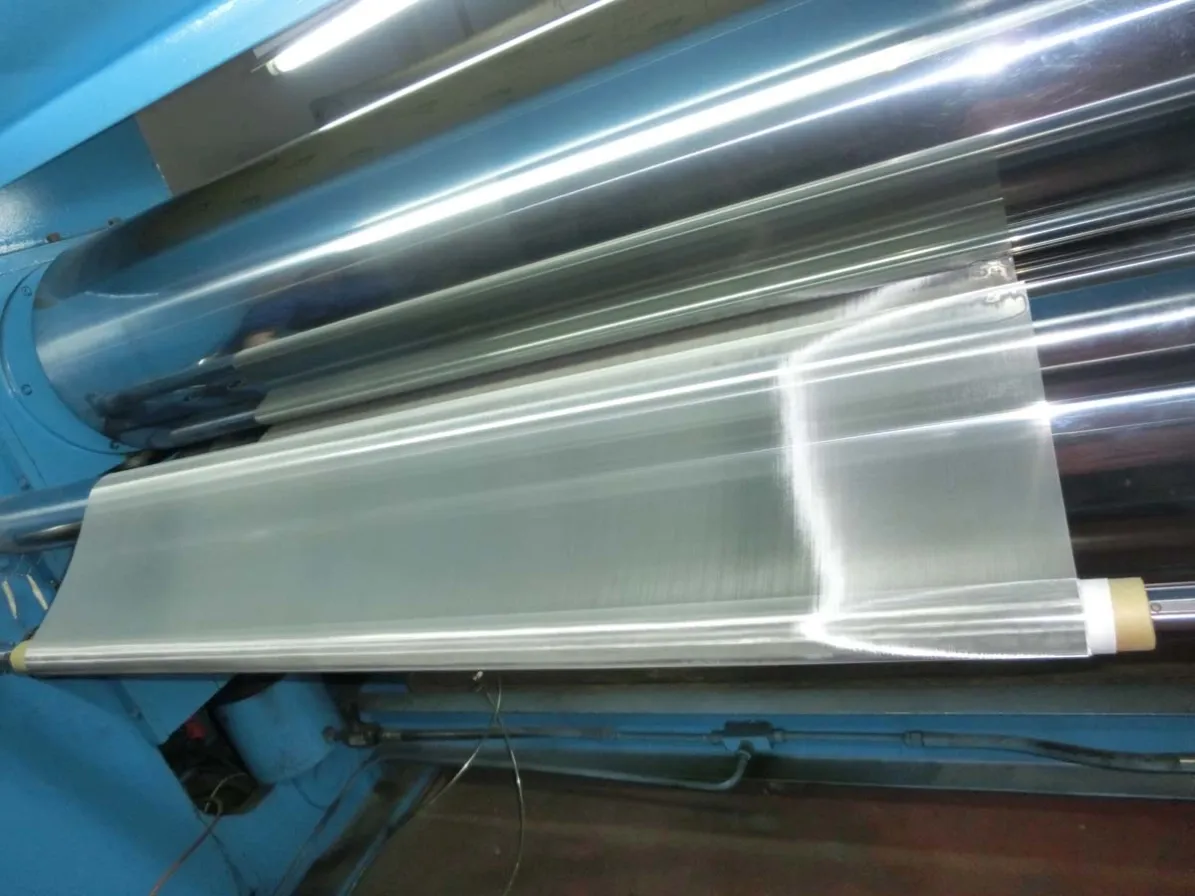

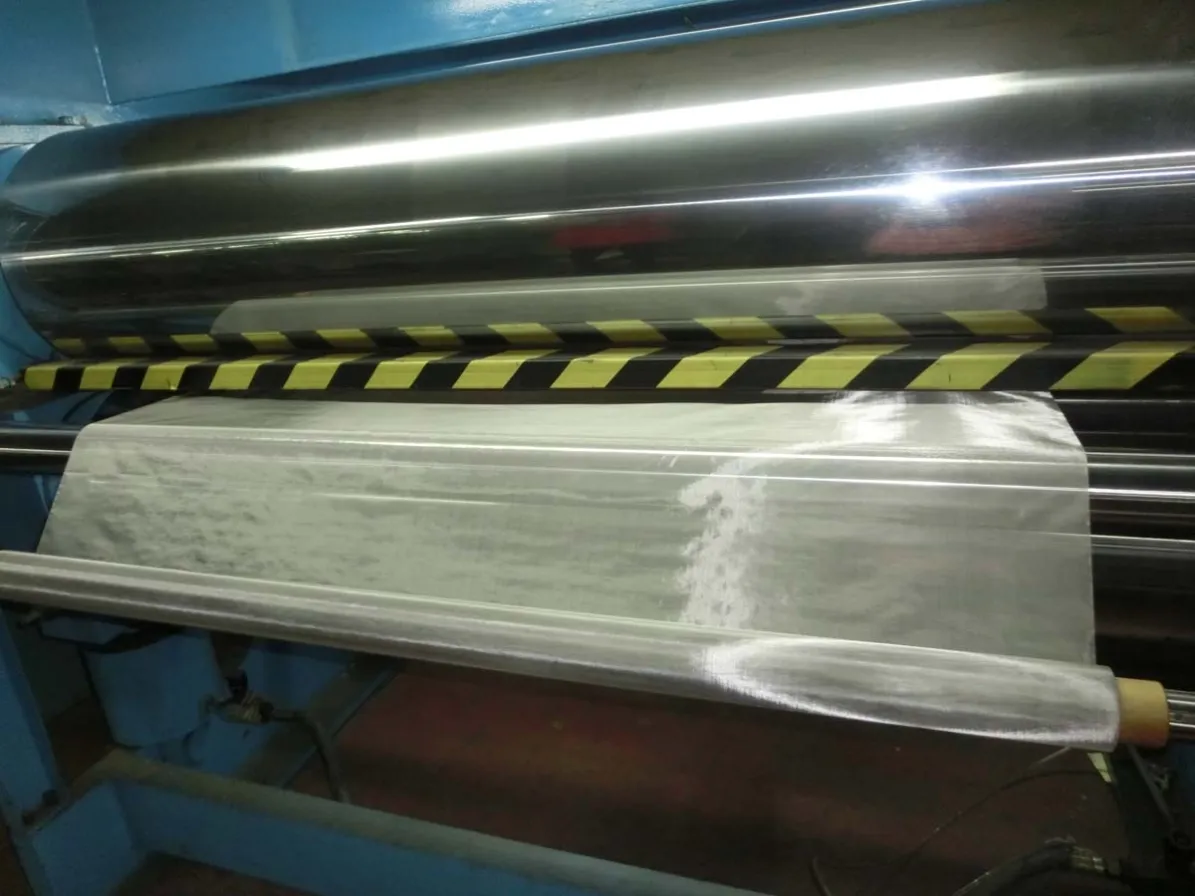

Super stainless steel screen printing mesh
Super stainless steel screen printing mesh is woven with high-grade wire imported from Japan, offering double the tensile strength of standard domestic alternatives and an exceptionally low elongation rate of just 3–5%. This superior dimensional stability ensures outstanding performance in applications demanding ultra-fine patterns and high precision.
Super Mesh is ideally suited for high-tech industries, including:
- Chip Electrical Components
- Solar Cells (Photovoltaics)
- Flat Panel Displays (FPD)
- Liquid Crystal Displays (LCD)
- Plasma Display Panels (PDP)

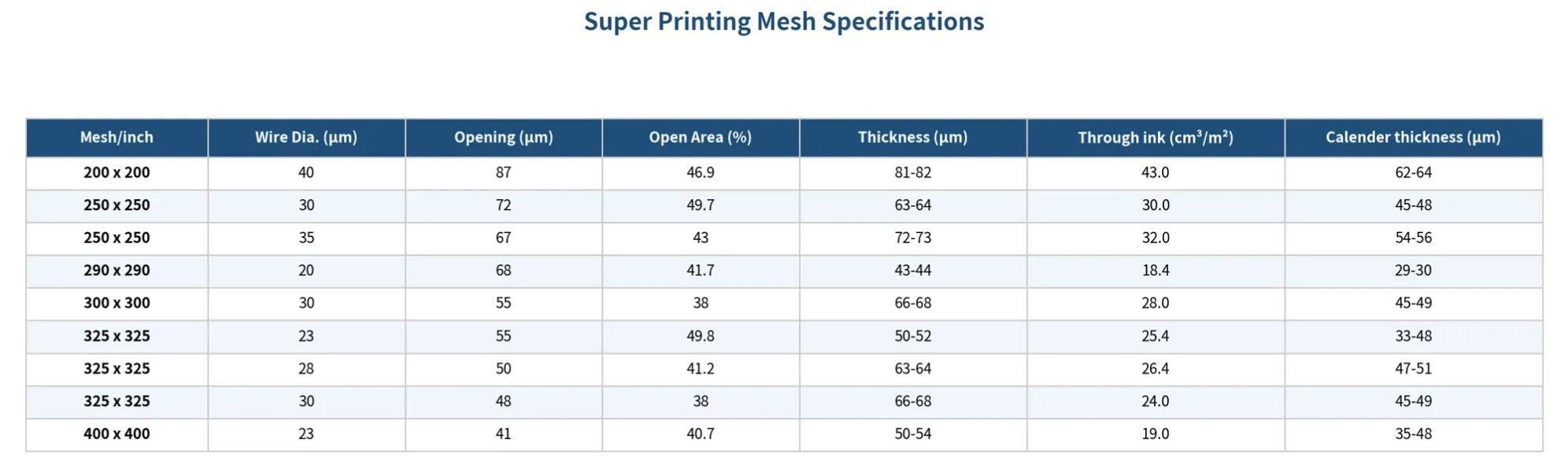

Specifications
