Stainless steel filter disc/tube

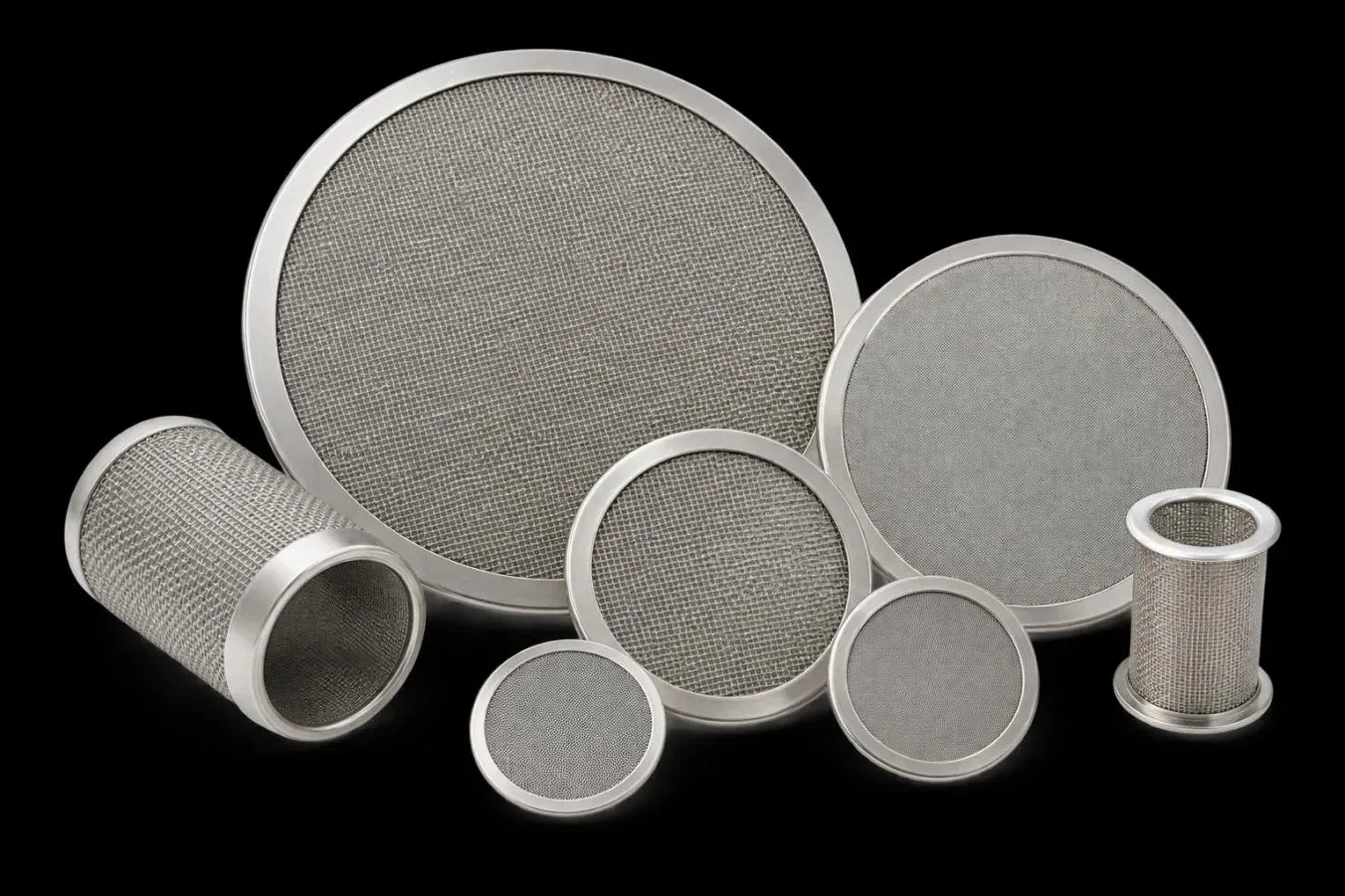

Woven Wire Mesh Filter Discs & Tubes
Precision filter discs and tubes from woven metal mesh, 5 micron to 5 mm, in stainless steel and special alloys for solid-liquid and gas filtration.
Specifications
- Materials
- SS304/316/316L/310/321, copper, brass, nickel, monel, inconel
- Filtration rating
- 5 micron to 5 mm
- Disc diameter
- 5 to 500 mm (custom available)
- Layers
- Single, double or multi-layer
- Operating temperature
- Up to 800 C (material dependent)
Construction and specifications

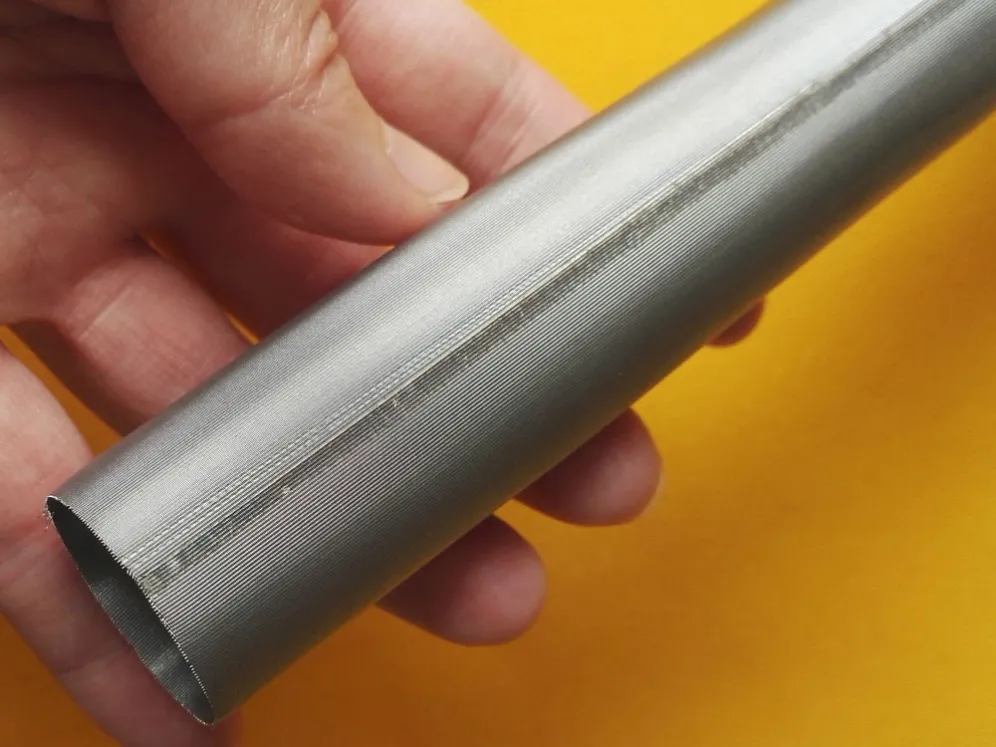

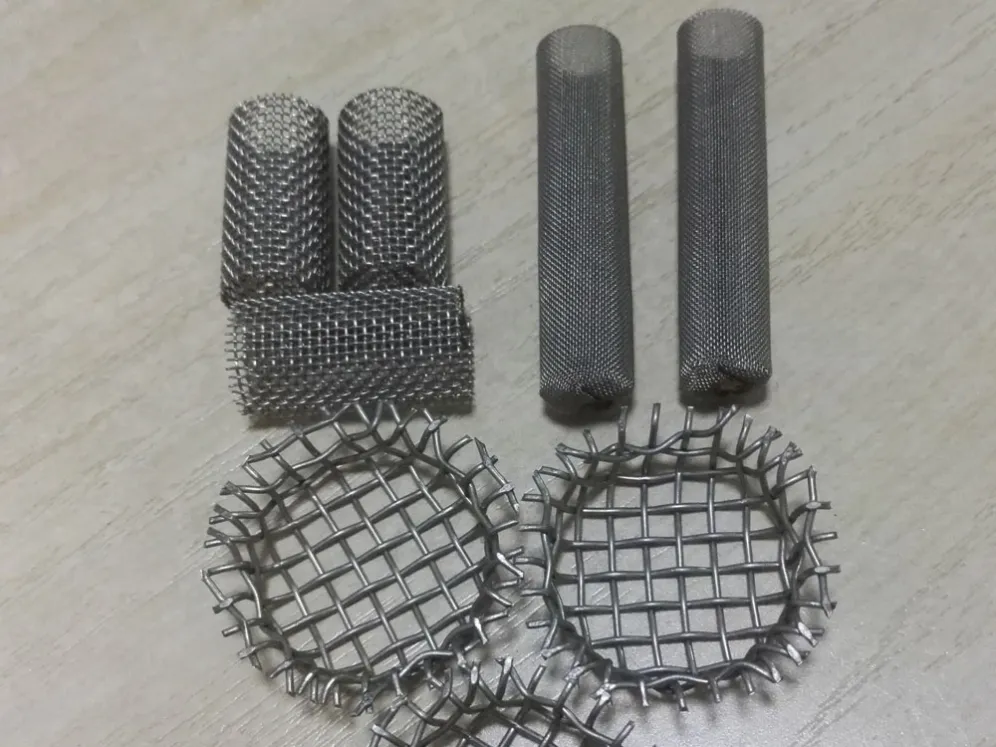

Filter discs and tubes are precision components manufactured from woven metal mesh by stamping or laser cutting, in single-layer or multi-layer assemblies.

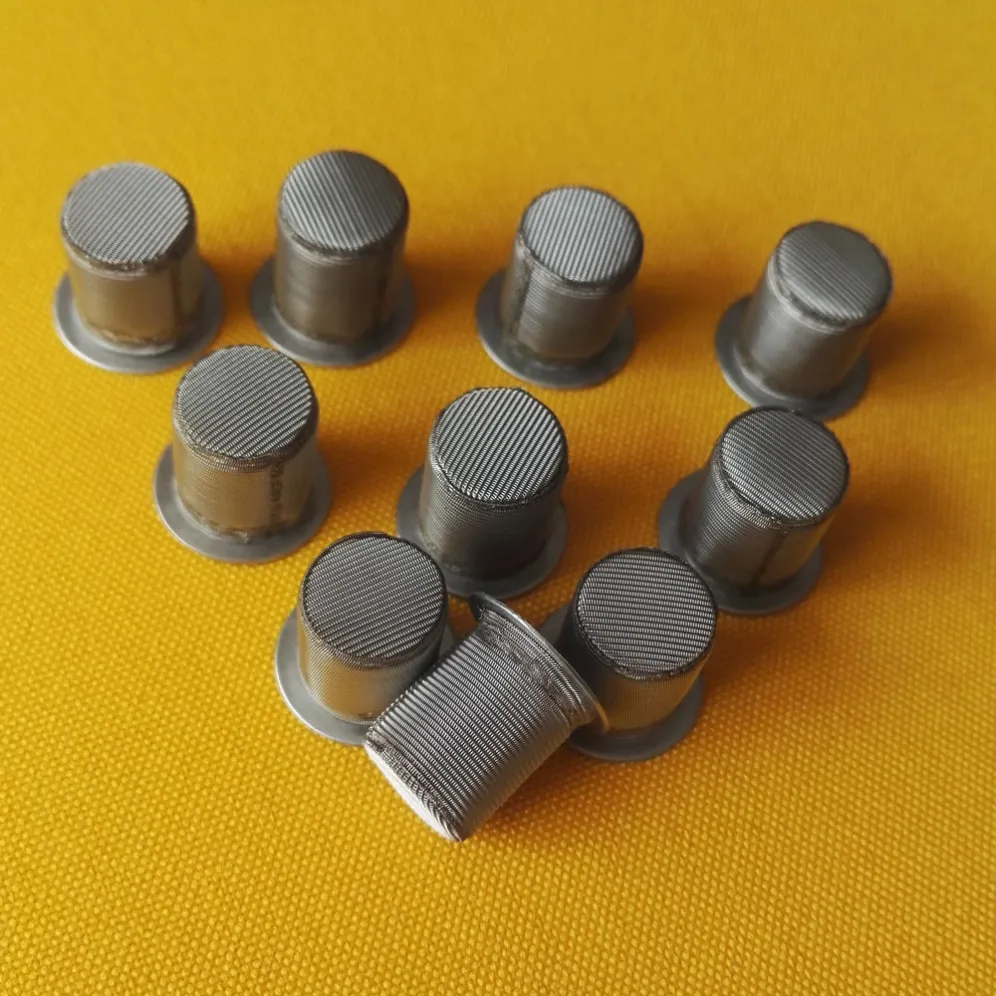

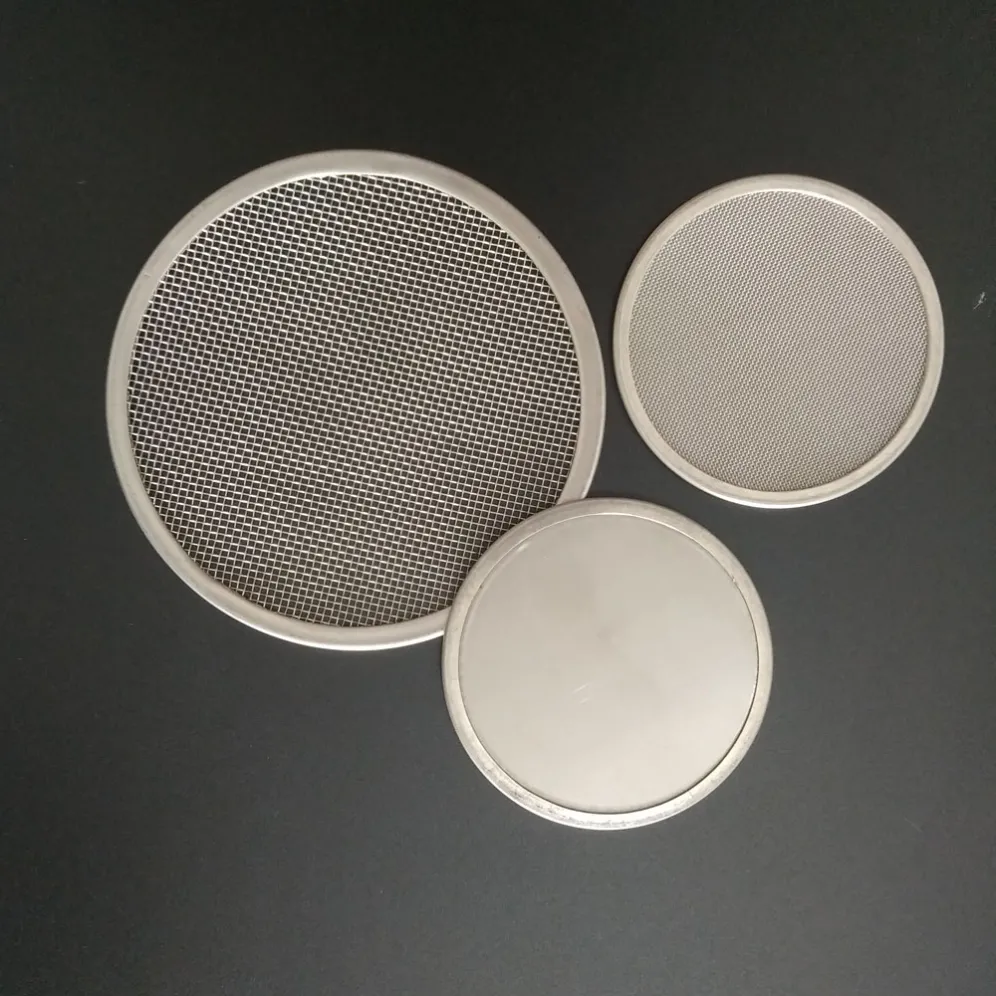

Types include single-layer discs, sintered multi-layer discs, spot-welded discs and edge-bound or framed discs.
Where it is used
Used for solid-liquid separation, gas filtration, particle retention and flow control in filters, strainers, valves, pumps, pipelines and hydraulic systems.
Industries include pipeline strainers, chemical and petrochemical processing, hydraulic systems, food and beverage (SS316L recommended) and pharmaceutical fine particle separation.
Ordering guidance
Specify diameter, mesh count, layers, material and edge treatment.
Custom geometries are available per drawings or samples.
